Review an overhead magnet or magnetic head pulley ahead of a crusher, shredder or other equipment.
Dings Magnetic Separators & Metal Recovery
Remove tramp metal before it reaches critical equipment, clean up a product stream, or recover valuable metal from a mixed feed.
Request a QuoteWhat are you trying to separate?
Start with the metal you want to remove, the material carrying it, and where you can install the separator.
Review the feed path, particle size and cleaning access for a drum, grate or specialty magnet.
Review an eddy current separator for conductive metals such as aluminum, with upstream ferrous removal in view.
Start with the separation point
For a belt application, send the belt width and speed, maximum burden depth, throughput and target metal size. For a chute or gravity feed, include the opening and how the material passes the magnet.

Choose the equipment for your job
Open a product for details, or use the guided RFQ to review your application with RTS.

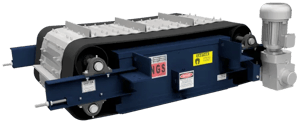

Overhead Magnets
Lift ferrous tramp metal from conveyed material.
Review suspension height, burden depth, crossbelt or inline mounting, and how the captured metal is discharged.
Also known as: Suspended magnets, overband magnets, crossbelt magnets.

Pulley Magnets
Separate ferrous metal at the conveyor discharge.
Review the existing pulley, shaft, belt speed and space for the reject stream.
Also known as: Magnetic head pulleys, magnetic conveyor pulleys.

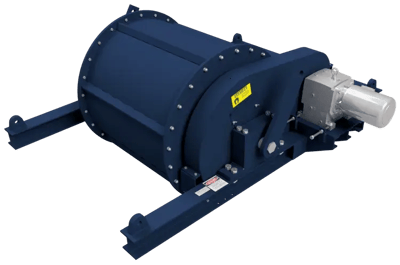

Drum Magnets
Separate ferrous metal as material passes a rotating drum.
Review the feed distribution, throughput and clearance for the separated metal.
Also known as: Magnetic drums, drum separators, deep-draw drums.

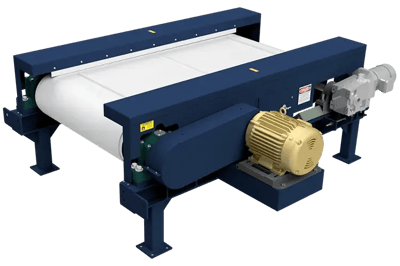

Eddy Current Separators
Recover conductive nonferrous metals from mixed material.
Share the feed size range, target metals and what removes ferrous material upstream.
Also known as: ECS units, nonferrous metal separators.

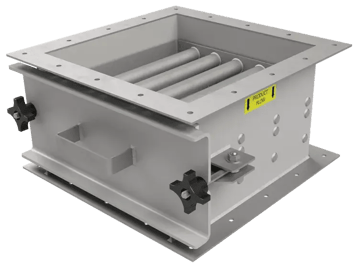

Grate Magnets
Capture ferrous contamination from gravity-fed powders or granules.
Review the opening, product characteristics and how the grate will be accessed for cleaning.
Also known as: Grid magnets, magnetic grates, hopper grate magnets.

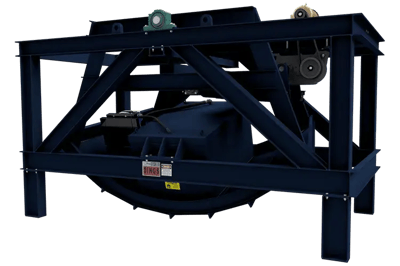

Specialty Magnets
Review a custom arrangement when standard equipment does not fit.
Send drawings or photos showing the feed point, access and clearance.
Also known as: Custom magnetic separators, specialty magnetic assemblies.
See Dings equipment in action
Eddy current separation for recycling
See Dings demonstrate its eddy current separator for material recovery facilities.
How the equipment fits into your process

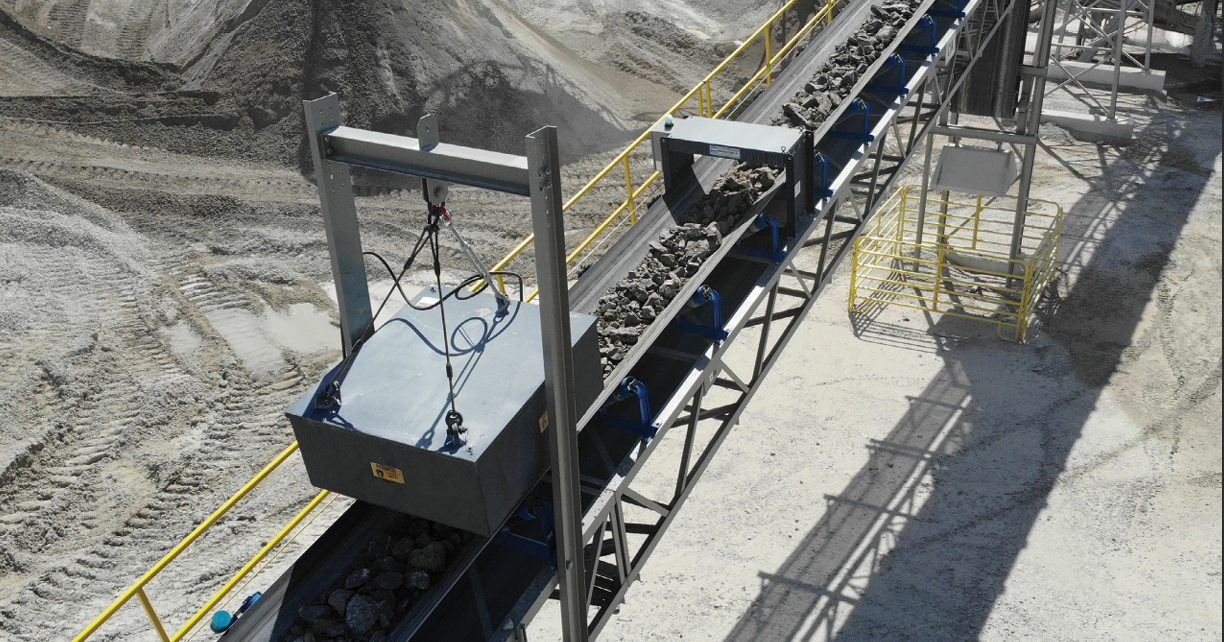

Over a conveyor belt
Measure the belt width, material depth and available height at the proposed magnet location.
At a discharge or chute
Review where the material opens up, how it passes the magnet and where rejects can go.
On a recovery line
Identify what ferrous separation is already in place and which nonferrous metals you want to recover.
Application examples

A Dings gallery example of ferrous separation at a recycling transfer point.

A Dings gallery example of nonferrous recovery equipment for electronic scrap.
Literature and application resources
Dings magnetic separators brochure
Compare overhead magnets, pulleys, drums, grates and other separator families.
Open PDFOverhead self-cleaning electromagnet RFQ
For overhead self-cleaning electromagnets. For other Dings products, use the guided RFQ below.
Download RFQ WorksheetQuestions to help plan your application
What should I send first?
Send the material, target metal and size range, throughput, installation point and a photo or sketch. Add the bulk density if available.
What is the difference between a magnet and an eddy current separator?
A magnet captures ferrous metal. An eddy current separator targets conductive nonferrous metals such as aluminum. A recovery line can use both in sequence.
What details help with an overhead magnet?
Provide belt width and speed, maximum burden depth, suspension height and the proposed mounting position. State what equipment needs protection.
READY TO DISCUSS YOUR APPLICATION?
Let’s review your magnetic separation application
Use the worksheet to gather details with your team, or work through the guided online RFQ.
RATE TECHNOLOGY SYSTEMS
Dings Quote Request
Share the material, target metal and installation details you know.
Prefer to speak directly? Email Sales or call 905-607-3240.
