Bulk Bag Loader Connector

QUOTE REQUEST | Spec Sheet | Bulk Bag Loader Install Guide | Bulk Bag Loader Catalogue | BFM Installation Gap Calculator

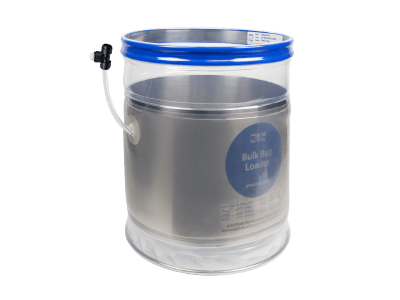

Bulk Bag Loader-400x300px

 Material: Food-Grade Ether-based Thermoplastic Polyurethane
Op Temp -25 - 110°C / -13 - 230°F
Diameters - 6" to 17.5" in 2" increments
Lengths -  12"

 This Bulk Bag Loader (Bulk Bag Filler) features a three-layer inflatable filling head with a stainless steel core fully encapsulated in Seeflex ether-based urethane for strength and durability.

-Equipped with a flexible, USDA-approved external air inlet that connects to an 8mm pneumatic line to inflate the reinforced outer sleeve.
-A T-style push-in air fitting includes a built-in pressure relief valve (preset to 6 psi) to prevent over-inflation.
-The top section snaps directly into a BFM® spigot and incorporates an encapsulated stainless steel support ring for structural integrity.
-Inflates rapidly to create a secure seal around the bulk bag neck, preventing product leakage.
-Eliminates clamps and pinch points, improving operator safety.
-Compatible with bulk bags both with and without liners.

Note: Recommended operating pressure is 3–4 psi (maximum 6 psi). The unit must not be inflated without a bulk bag neck properly positioned over the loader.



Before and After:

Non-BFM® sleeve used to fill a bulk bag.



BFM® Bulk Bag Loader with bag for filling


Diagram of common process applications for BFM fittings

BEFORE & AFTER

The BFM® Difference

Use the slider to see the difference!

WITH TRADITIONAL METHODS

  • Powder leaks through clamps
  • Difficult to fit, variations & inaccuracies
  • Overpressure causes high-risk clamp failure
  • Frequent downtime for replacements, clean-ups

THE BFM DIFFERENCE ENSURES

  • No dust leakage and better hygiene control
  • Easy snap-in system and helps to streamline inventory
  • Stronger pressure resistance and reduced explosion risk
  • More durable material, quick change overs and less downtime.

BFM Fittings Installation Gap Calculator



BFM® Fitting System – The Industry Standard in Hygienic Flexible Connectors

BFM® Global Ltd is the manufacturer of the patented BFM® fitting system — the world’s first snap-fit flexible connector engineered to eliminate the persistent problems associated with traditional hose-clamped industrial sleeves.

The system was developed by founder and CEO Blair F. McPheat after witnessing widespread dust leakage, product loss, and costly downtime in manufacturing plants using conventional clamped connections. Excessive clean-ups, maintenance interruptions, and hygiene concerns were reducing productivity and increasing operational risk across bulk material handling facilities.

Today, the BFM® fitting BLUEBAND™ flexible connector system is recognized globally as the gold standard for dust-tight, leak-free performance. Trusted by leading food, pharmaceutical, chemical, and mineral processing manufacturers, BFM® connectors improve plant hygiene, reduce contamination risk, enhance safety, and minimize downtime.

OEM equipment manufacturers also specify BFM® fittings as standard components on new machinery, recognizing the value they add in compliance, efficiency, and long-term reliability.

Upgrade to a proven, patented flexible connection system designed for modern processing environments.
