Keeping your equipment connected - Dust free Flexible snap in connectors - Superior Performance vs Hose Clamp Fittings


CSA, 3A, ATEX APPROVED! - Heavy Duty and High Temp Options Available

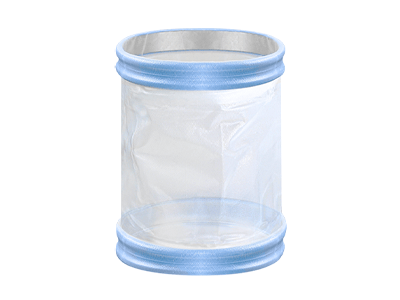

Teflex NP Opaque For High Temp Applications

Teflex NP Opaque-white background-400x300px

 Material: Pure PTFE
Op Temp -73 - 300°C / -99 - 572°F | Max Op Pressure - 5 PSI
 Diameters - 4", 5", and 6" to 20" in 2" increments
Lengths - 3", and 4" to 39" in 2" increments

The Teflex NP opaque connector is manufactured from pure PTFE, allowing reliable performance across both extreme low and high temperatures while remaining chemically stable across the full pH range. The Teflex NP Opaque material is semi-transparent, enabling visual monitoring of product flow.

Applications
-Suitable for highly caustic or acidic materials, as PTFE is unaffected across the full pH spectrum.
-Designed for extreme temperature environments, operating continuously up to 300°C (572°F) with short-term exposure up to 316°C (600°F), and performing reliably at temperatures as low as -73°C (-99°F).



Diagram of common process applications for BFM fittings

BEFORE & AFTER

The BFM® Difference

Use the slider to see the difference!

WITH TRADITIONAL METHODS

  • Powder leaks through clamps
  • Difficult to fit, variations & inaccuracies
  • Overpressure causes high-risk clamp failure
  • Frequent downtime for replacements, clean-ups

THE BFM DIFFERENCE ENSURES

  • No dust leakage and better hygiene control
  • Easy snap-in system and helps to streamline inventory
  • Stronger pressure resistance and reduced explosion risk
  • More durable material, quick change overs and less downtime.

Ready to discuss your application?

Contact  RTS - sales@ratetechnology.com
to learn how BFM connectors can keep your operations dust free.
