Keeping your equipment connected - Dust free Flexible snap in connectors - Superior Performance vs Hose Clamp Fittings


CSA, 3A, ATEX APPROVED! - Heavy Duty and High Temp Options Available

Corner Connectors for Wash Applications

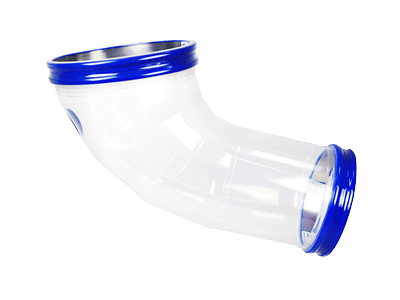

corner connector

Material: Food Grade - Ether-based Thermoplastic Polyurethane
Op Temp -25 - 110°C / -13 - 230°F | Max Op Pressure - 5 PSI
 Diameters - Inlet - 5" to 26" in 2" increments | Outlet - 4" to 24" in 2" increments
Lengths - 4" to 24" in 2" increments | Height - 8" to 35” in 2" increments

The Corner Connector comes in 040E or 060ES materials and is manufactured from clear, ether-based thermoplastic polyurethane and features a tapered inlet, a 110° angled bend, and a straight discharge outlet.

It is engineered to redirect clean-in-place (CIP) wash fluids through your system, helping keep equipment dry and preventing cleaning chemicals from contaminating product pathways.

Applications
-CIP (clean-in-place) systems as an alternative to traditional steel tun dishes or swivel pipe assemblies.
-Installations where product or material must change direction around a bend.
-Compact machinery layouts (e.g., sifters or sieves) where space is limited and product must be redirected efficiently.



Diagram of common process applications for BFM fittings

BEFORE & AFTER

The BFM® Difference

Use the slider to see the difference!

WITH TRADITIONAL METHODS

  • Powder leaks through clamps
  • Difficult to fit, variations & inaccuracies
  • Overpressure causes high-risk clamp failure
  • Frequent downtime for replacements, clean-ups

THE BFM DIFFERENCE ENSURES

  • No dust leakage and better hygiene control
  • Easy snap-in system and helps to streamline inventory
  • Stronger pressure resistance and reduced explosion risk
  • More durable material, quick change overs and less downtime.

Ready to discuss your application?

Contact  RTS - sales@ratetechnology.com
to learn how BFM connectors can keep your operations dust free.
