Keeping your equipment connected - Dust free Flexible snap in connectors - Superior Performance vs Hose Clamp Fittings


CSA, 3A, ATEX APPROVED! - Heavy Duty and High Temp Options Available

Seeflex Tapered Connectors / Flexible Hoppers

QUOTE REQUEST | Spec Sheet | Health Canada Inspection | 3A Certification | BFM Catalogue | BFM Installation Gap Calculator

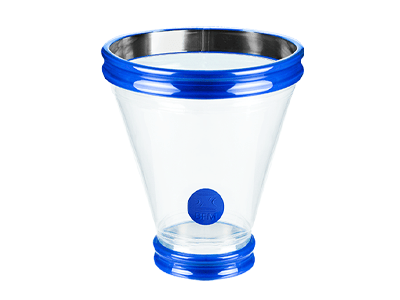

Tapered connector-white background-400x300px
 Material: Food-Grade Ether-based Thermoplastic Polyurethane
Op Temp -25 - 110°C / -13 - 230°F | Max Pressure 5 PSI
Diameters - 4", 5", and 6" to 65" in 2" increments
Lengths - Varies based on material
Not Available with Support Rings

The BFM® Tapered Connector is a flexible connector with a built-in tapered shape that lets you join equipment with different flange sizes without using reducers or additional hardware.

It provides a sealed, dust-tight connection while accommodating movement and misalignment. Made from tough, transparent thermoplastic urethane, it resists abrasion and chemicals and is available in various size combinations and options like support rings or tool-release cuffs.

These can be used for:
Pipe Size Reduction - These connectors allow product to transition from a larger pipe to a smaller one, helping manage or control flow characteristics.
Reduced Wear - Expanding from a smaller inlet to a larger outlet minimizes product contact with connector walls, reducing abrasion.
Space-Constrained Installations - In equipment with limited vertical clearance, the smaller end can nest inside the larger end during compression, taking up less space than a standard connector. (Not recommended for frequent or continuous compression cycles.)
Diagram of common process applications for BFM fittings

BEFORE & AFTER

The BFM® Difference

Use the slider to see the difference!

WITH TRADITIONAL METHODS

  • Powder leaks through clamps
  • Difficult to fit, variations & inaccuracies
  • Overpressure causes high-risk clamp failure
  • Frequent downtime for replacements, clean-ups

THE BFM DIFFERENCE ENSURES

  • No dust leakage and better hygiene control
  • Easy snap-in system and helps to streamline inventory
  • Stronger pressure resistance and reduced explosion risk
  • More durable material, quick change overs and less downtime.

BFM Fittings Installation Gap Calculator



BFM® Fitting System – The Industry Standard in Hygienic Flexible Connectors

BFM® Global Ltd is the manufacturer of the patented BFM® fitting system — the world’s first snap-fit flexible connector engineered to eliminate the persistent problems associated with traditional hose-clamped industrial sleeves.

The system was developed by founder and CEO Blair F. McPheat after witnessing widespread dust leakage, product loss, and costly downtime in manufacturing plants using conventional clamped connections. Excessive clean-ups, maintenance interruptions, and hygiene concerns were reducing productivity and increasing operational risk across bulk material handling facilities.

Today, the BFM® fitting BLUEBAND™ flexible connector system is recognized globally as the gold standard for dust-tight, leak-free performance. Trusted by leading food, pharmaceutical, chemical, and mineral processing manufacturers, BFM® connectors improve plant hygiene, reduce contamination risk, enhance safety, and minimize downtime.

OEM equipment manufacturers also specify BFM® fittings as standard components on new machinery, recognizing the value they add in compliance, efficiency, and long-term reliability.

Upgrade to a proven, patented flexible connection system designed for modern processing environments.


BFM connector group 500 x 240

Ready to discuss your application?

Contact  Jonathan - jonathan@ratetechnology.com
to learn how BFM connectors can keep your operations dust free.

Food-Icon

Downtime Significantly Reduced for 24-Hour Flour Miller

“They’re one of the best things we’ve found…since installing the first two fittings, we’ve been replacing all of the remaining clamp-and-sleeve connectors in the facility with BFM® fittings. I’ve been putting them everywhere there’s a transfer point because they make things so much easier for our operators.”

Superintendant of Engineering and Maintenance

Case Study provided courtesy of BFM® Distributor Powder-Solutions Group (United States)

>> CASE STUDY

CLEANING & REFITTING PROCESS SIMPLIFIED

Chemical-Icon

Change From Clamped Connectors Helps Retain Valuable Product

"BFM® fittings were installed to replace all existing hose-clip type connections on both the ultrasonic vibrating sifter and electronic magnet filter.

Now the internal cleaning process can be completed in a much shorter time due to the fast and easy snap-fit removal and re-installation process of the BFM® fitting."

Factory Manager

Case Study courtesy of BFM® Distributor International Chemical Scientific (South Korea)

>> CASE STUDY

BFM® FITTING CONTAINS SUPER-FINE POWDER

Pharma-Icon

Increased Production Efficiency

“Shortly after buying the first two BFM® fittings over 13 years ago, our Continuous Improvement LEAN Process outcomes demanded we purchase more due to the time savings during set-ups, the reliability of a good seal and the ease of assembly and cleaning for our operators. We have never had a BFM® connector let go or lose product which would be a costly event in the pharma industry. We now have them fitted to all our gravity transfer systems and product mixing bins.”

Engineering Supervisor,
Global Nutraceuticals Manufacturer, (Australia).

EFFICIENCY GAINS FOR NUTRACEUTICAL PROCESSOR

Mineral-Icon

Connectors Now Lasting Over 50 Times Longer

“Plaster is very fine and gets everywhere. It is difficult to contain, particularly when your connecting sleeve has holes in it! BFM® has been brilliant. The connector seals inside the spigot so it can’t chafe on the sharp edges and there are no jubilee clips to tear the fabric. It lasts for longer and best of all it doesn’t leak any dust.”

Works Engineer
UK Plaster Manufacturer
Case study courtesy of BFM® Distributor ProSpare (UK)

PROBLEM POWDER CONTAINED ON SIEVE
