Keeping your equipment connected - Dust free Flexible snap in connectors - Superior Performance vs Hose Clamp Fittings


CSA, 3A, ATEX APPROVED! - Heavy Duty and High Temp Options Available

Seeflex 040E Venting Surge Hopper

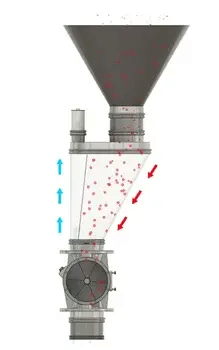

Venting Surge Hopper_how does it works

Material: Food-Grade Ether-based Thermoplastic Polyurethane
Op Temp -25 - 110°C / -13 - 230°F | Max Op Pressure 5 PSI
Diameters - Inlet - 10" to 39.5" in 2" increments | Outlet - 8", 10", 12" or 14"
Lengths -  16” – 39.5“ in 2” increments

The Venting Surge Hopper is a tapered, angled connector with an internal divider that directs powder flow through one channel while allowing displaced air to vent through the other.

Constructed from transparent Seeflex 040E material, it provides clear visibility of product movement — eliminating the need to open inspection hatches to check for bridging. The flexible walls allow operators to manually release blockages by gently flexing the hopper sides.

The unit integrates with a dedicated Surge Hopper Spigot featuring a weir plate designed to align with the internal partition.

Applications
-Intermediate hopper above a rotary valve or bag-filling station
-Handling sticky or bridging-prone products
-Processes requiring frequent cleaning, with quick removal and reinstallation



This fitting must be Paired with:

Surge Hopper Spigot_White BG_400x300pxVenting Surge Hopper Spigot


Diagram of common process applications for BFM fittings

BEFORE & AFTER

The BFM® Difference

Use the slider to see the difference!

WITH TRADITIONAL METHODS

  • Powder leaks through clamps
  • Difficult to fit, variations & inaccuracies
  • Overpressure causes high-risk clamp failure
  • Frequent downtime for replacements, clean-ups

THE BFM DIFFERENCE ENSURES

  • No dust leakage and better hygiene control
  • Easy snap-in system and helps to streamline inventory
  • Stronger pressure resistance and reduced explosion risk
  • More durable material, quick change overs and less downtime.

Ready to discuss your application?

Contact  RTS - sales@ratetechnology.com
to learn how BFM connectors can keep your operations dust free.
