Flow Control Valves & Much More!

Image of Craig Rattos
Craig Rattos

Understanding the Dual Role of Flow Control Valves
|  Diverters and Slide Gates

Flow Control Valves, including diverters and slide gates, are crucial in dry bulk material handling. Slide gates, also known as "Knife Gates" or "Gate Valves," allow or block material flow with a sliding plate for precise control, ideal for batch delivery and maintenance interruptions.

On the flip side, diverters are essential components that direct materials to different destinations from a single source, efficiently guiding them into multiple outlets. This enhances material handling efficiency and system adaptability without requiring extensive changes to the pipeline infrastructure.

The integration of diverters and slide gates showcases the essential functionality of Flow Control Valves, allowing operators to precisely control the flow and destination of dry bulk materials. This seamless integration emphasizes the evolution of industrial processes while highlighting the critical importance of efficiency, safety, and adaptability in modern operations.

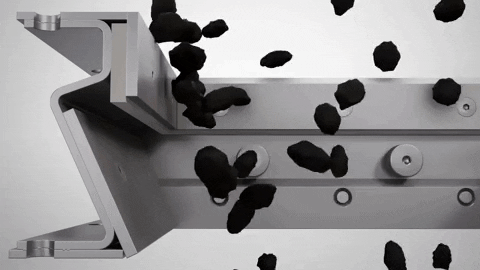

64d541524d98654e1c89d512_Displacement Pocket - TSG



What are "Dry Bulk Materials"

"Dry Bulk Materials" encompass a diverse array of substances like grains, minerals, chemicals, and construction materials that flow freely during handling. Specialized flow control valves, such as diverters and slide gates, are essential for effective and secure operations in industrial systems.

The evolution of flow control valves in dry bulk material handling began during the Industrial Revolution to meet the increasing need for efficient material handling solutions in emerging factories and mills. Primitive manual systems were crafted with basic mechanisms to regulate the flow of granular materials like coal, grain, and sand from storage containers.

Early control valve designs faced challenges with construction materials and precision, leading to leakage and maintenance issues, especially with abrasive materials, posing safety hazards for workers in hazardous environments.

Despite obstacles, the need for control valves in handling dry bulk materials drove enhancements. Superior materials like stainless steel improved durability, while advancements in manufacturing achieved tighter tolerances and minimized leakage.

Improved sealing technologies now utilize advanced materials and innovative designs to achieve exceptional leakage resistance, addressing the abrasive qualities of materials efficiently.

Automation revolutionized control valve development, enabling remote operation, enhancing safety, improving material flow control, and reducing waste.

In modern industrial settings, smart technologies have revolutionized control valve technology. Valves now play a crucial role in advanced material handling systems, equipped with sensors and linked to central control units for real-time monitoring and adjustments. This integration has significantly improved efficiency, safety, and reliability in handling dry bulk materials, ushering in a new era of industrial capabilities.



Innovative Design and Mechanism

Vortex's innovative approach to control valve design and manufacturing ensures durability, precision, and adaptability. Featuring live-loaded seals and wear-compensating liners, their valves minimize leakage and extend service life for various materials and industries. Utilizing advanced materials and manufacturing processes, Vortex's valves excel in handling any application.

Vortex offers a wide range of flow control valve solutions tailored to handle different material types, including lightweight and heavy, abrasive substances. They provide specialized coatings and liners for powders prone to sticking, as well as reinforced structures for lasting durability with highly abrasive materials.

Vortex, with almost half a century of experience and 27 patents, leads in pioneering flow control valve designs. Notable products like the Quantum Series and Wye Line Diverter showcase precision and minimal maintenance with patented live-loaded seals and modular designs.

The Titan Series Control Valves by Vortex are designed for handling heavy-duty and abrasive materials, incorporating hardened steel components for durability. Enhanced by special sealing technologies, these valves resist wear and tear, extending their operational life in challenging environments.



Safety and Efficiency

Vortex prioritizes safety and efficiency in control valve design, minimizing risks associated with exposed pinch points that could cause serious injuries to operators and maintenance personnel.

Valves without advanced safety features like those in Vortex Control Valves pose significant risks to workers and operations, leading to material spillage, slip hazards, and potential exposure to harmful substances. Without durable seals and wear-resistant materials, these valves are prone to leaks, requiring frequent maintenance and putting maintenance staff at risk during repairs. The lack of secure shut-off mechanisms increases the risk of cross-contamination, compromising material quality, worker health, and product integrity. Older valve designs lacking precise flow control can cause operational inefficiencies, safety hazards, and potential equipment failures, exposing facilities to severe disruptions and non-compliance with safety regulations.



Real-World Success Stories

Several businesses across various sectors have reaped the benefits of implementing Vortex's control valve solutions.

This case where a prominent pastry mix manufacturer, producing an astonishing 10,000 bags of donut mix daily, which in turn yields approximately 168 million donuts per day, relies on Vortex's control valves for their production process.

International Pastry Mix Manufacturer Relies on Vortex Components

Another case has a customer that utilizes a customized V-Notch Manual Titan Gate to meter and accurately control their flow of sand.

V-Notch Manual Titan Gate Handling Sand



Vortex Can Handle It

There's no time for downtime. That's why Vortex Global makes solids & bulk handling components that are made to perform.

Vortex delivers innovative solutions to a wide range of industries handling thousands of dry bulk solids.  If the product is dry, there is a high probability Vortex has handled it.


Don't have time to read the entire article?  Prefer to listen?  Hit the recording below to have this blog read to you
